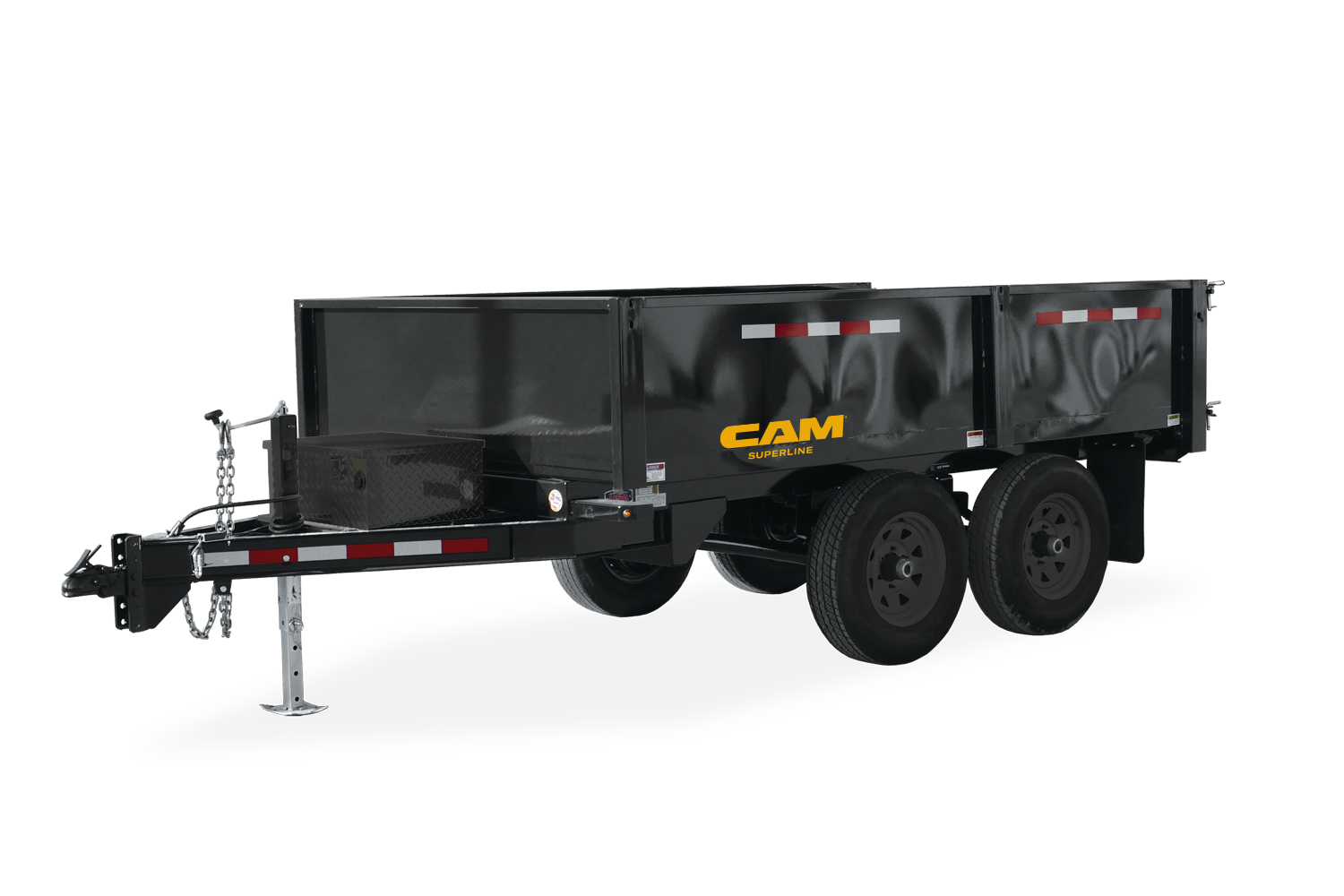

Deckover Dump Trailer

• 6' x 10', 10k

• Model
• 6' x 10', 10k P10610DODT

• GVWR (lbs.)
• 6' x 10', 10k 9,900

• GAWR (lb. / Axle)
• 6' x 10', 10k 5,080

• Curb Weight
• 6' x 10', 10k 2,100

• Payload
• 6' x 10', 10k 7,800

• Frame
• 6' x 10', 10k 5” Channel

• Crossmembers
• 6' x 10', 10k 10 Gauge, Formed

• Tongue
• 6' x 10', 10k 5” Channel

• Coupler
• 6' x 10', 10k Adjustable 2-5/16” Ball Coupler

• Jack
• 6' x 10', 10k 7k Bolt-On Drop Leg Jack

• Axles
• 6' x 10', 10k 6,000 lb. Greased

• Suspension
• 6' x 10', 10k Slipper Spring Suspension

• Tires
• 6' x 10', 10k 225/75R15 LRD

• Wheels
• 6' x 10', 10k 15”, 6 on 5.5

• Volume Capacity
• 6' x 10', 10k 3.9 cu yd

• Lights
• 6' x 10', 10k LED Lights - Rubber Mounted

• Electric Plug
• 6' x 10', 10k 7-Way SAE Plug

• Finish
• 6' x 10', 10k PPG Industrial Polyurethane Paint

• Overall Length
• 6' x 10', 10k 172”

• Bed Width Inside
• 6' x 10', 10k 72.5”

• Bed Length Inside
• 6' x 10', 10k 120”

• Side Wall Height
• 6' x 10', 10k 20.25”

• Deck Height
• 6' x 10', 10k 33”

• Coupler Height
• 6' x 10', 10k 16” - 24”

• Gate
• 6' x 10', 10k Double-Acting Tailgate w/ Chains

• Hydraulic Cylinder
• 6' x 10', 10k One 3.5” x 36”

• Hydraulic Pump
• 6' x 10', 10k 12V Single Acting

• Battery
• 6' x 10', 10k 12V Deep-Cycle Battery, DP24

• Dump Angle
• 6' x 10', 10k 47°
