Extra Wide Tilt Trailer

Bed Width: 7′
Bed Length: 19′-26′
GVWR: 15,400-17,600 lbs
GAWR: 7,000-8,000 lbs/axle
CAM Extra Wide Split Deckover Tilt Trailer Front Tilted

83" Deck Width Between Fenders – Extra Space for Wider Machines

Provides increased flexibility for hauling a broader range of equipment with ease.

4' Stationary Deck – Perfect for Hauling Attachments

Keeps tools, buckets, and accessories stable during transport without interfering with the tilt deck.

Removable Fenders – Gain Side Access when Needed.

Allows for easier loading and unloading, especially when equipment overhangs the deck.

Torsion Suspension – Delivers a Smoother, Quieter Ride

Improves handling and reduces wear, making it ideal for heavy loads on varied terrain.

Extra Wide Tilt Trailer

CAM Superline® Extra Wide Tilt Trailers combine a broad 83-inch deck with a smooth tilt bed for the ultimate in equipment loading versatility. Built to handle heavy-duty tasks, these tilt trailers are engineered for efficient, secure transport of compact equipment, attachments, and more.

Key Benefits

83" Deck Width Between Fenders – Extra Space for Wider Machines

Provides increased flexibility for hauling a broader range of equipment with ease.

4' Stationary Deck – Perfect for Hauling Attachments

Keeps tools, buckets, and accessories stable during transport without interfering with the tilt deck.

Removable Fenders – Gain Side Access when Needed.

Allows for easier loading and unloading, especially when equipment overhangs the deck.

Torsion Suspension – Delivers a Smoother, Quieter Ride

Improves handling and reduces wear, making it ideal for heavy loads on varied terrain.

Explore This Trailer

CAM Extra Wide Split Deckover Tilt Trailer Front Tilted

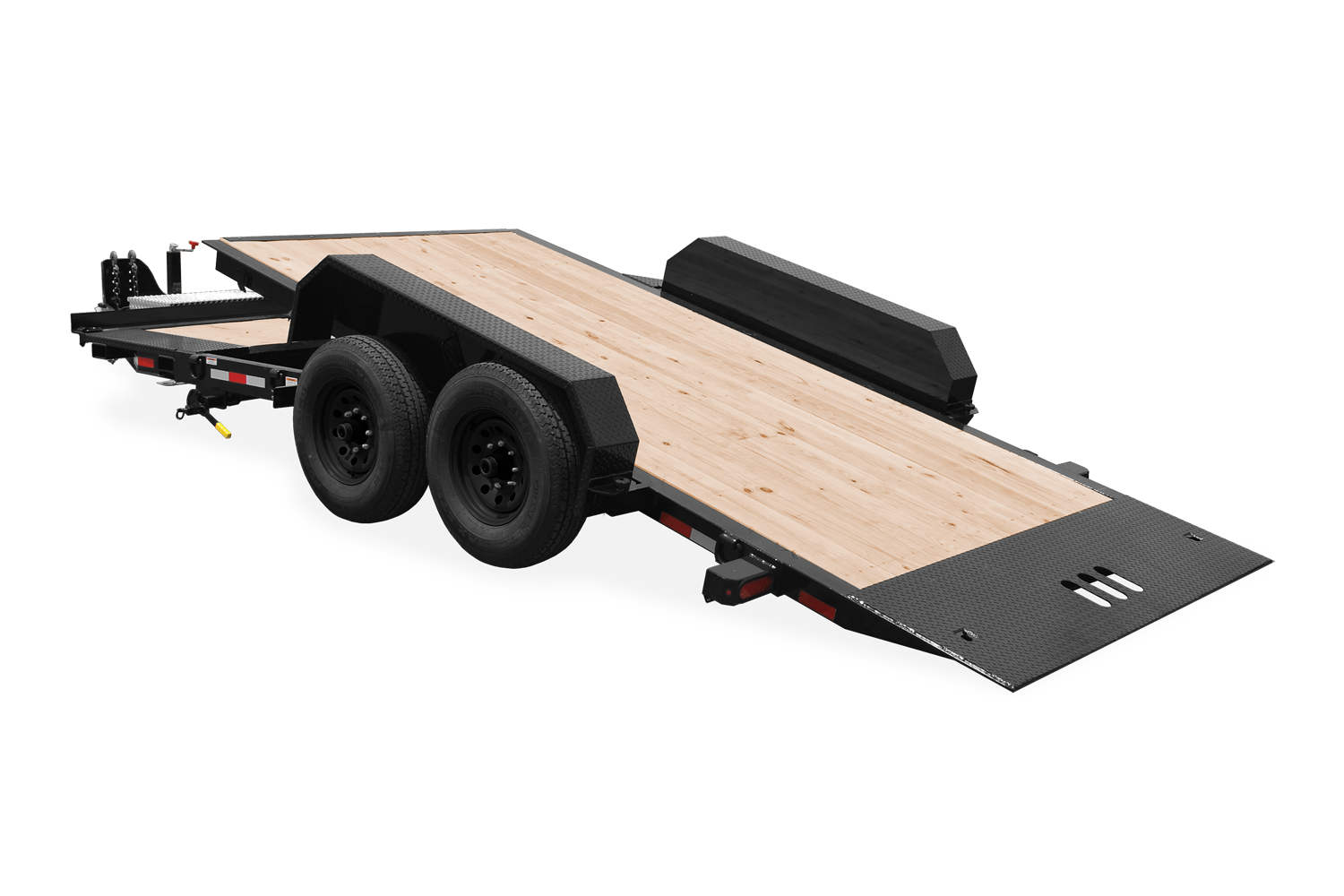

CAM Extra Wide Split Deckover Tilt Trailer Rear Tilted Down

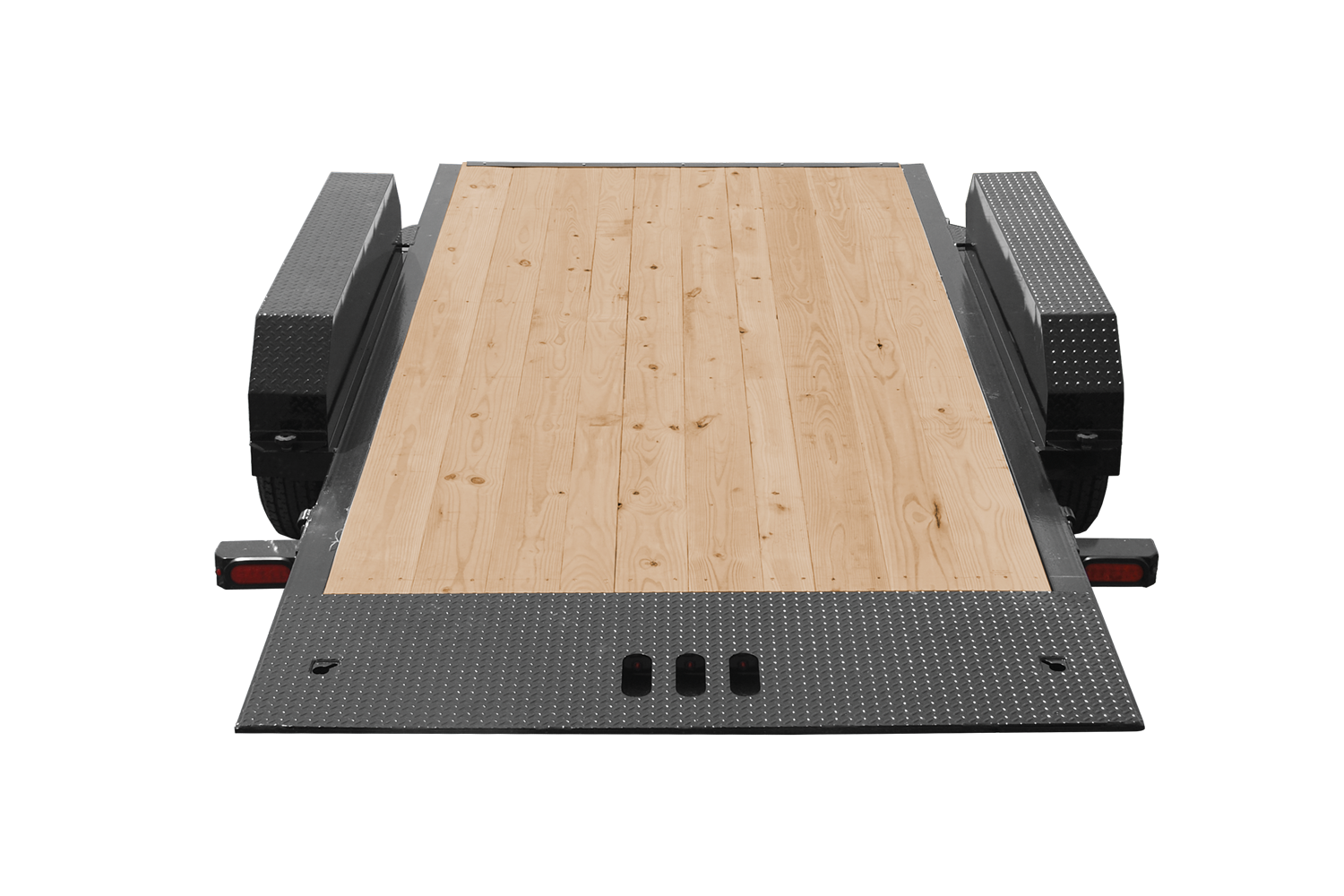

CAM Extra Wide Split Deckover Tilt Trailer Rear Straight

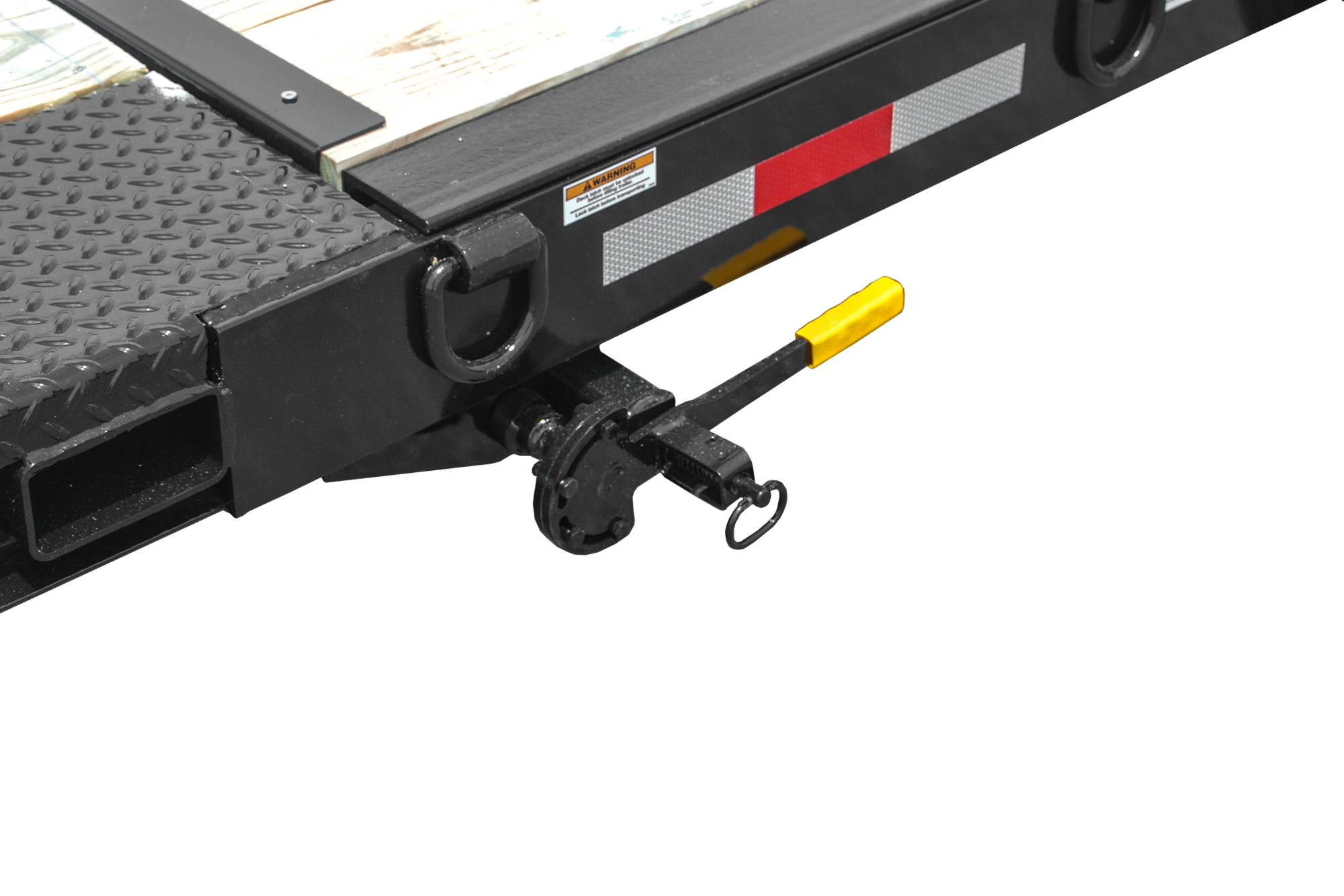

CAM Extra Wide Split Deckover Tilt Trailer Tilt Lock Latch

Model Color Options:

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a New Extra Wide Tilt Trailer?

Overview

The CAM Superline® Extra Wide Split Tilt Trailer is purpose-built for equipment haulers who need uncompromising strength, space, and ease of loading. With its signature 83-inch deck width between the fenders, this tilt bed trailer accommodates a wider range of compact machines and implements. A low 14° tilt angle simplifies loading, while the dual-function split deck—with a 4-foot stationary front section and a tilting rear—maximizes loading versatility.

Available Models

This trailer series comes in multiple configurations: 15+4, 16+4, and 17+4 deck lengths, each offered with either a 15,400 lb. or 17,600 lb. GVWR. You can choose between greased or oil bath axles, oak or pressure-treated pine decking, and different tire/wheel setups to suit your specific needs. Whether you’re moving compact loaders, attachments, or scissor lifts, this trailer delivers robust payload capacities ranging from 11,680 to 13,370 lbs.

Standard Features

Every Extra Wide Tilt Trailer comes loaded with features like removable diamond plate fenders, torsion suspension, adjustable ball coupler, a 12K bolt-on drop leg jack, and LED lighting. The deck height is optimized for stability, and tie-down points include (8) 5/8" D-rings and banjo eye tie-downs. A steel toolbox, sealed wiring harness, and a solar-charged breakaway system round out the build. A spare tire mount and pallet fork carrier (excluding gooseneck models) are also included.

Options

Upgrade your trailer to meet the demands of the job. Available options include gooseneck configurations in both GVWR classes, a power tilt package with dual 8-ton cylinders and integrated pump box, 3/16" diamond plate decking, winch mount, forklift tread package, extra deck lengths up to 21’, hydraulic jack, and pintle hook setup. These enhancements transform the trailer into a heavy-hauling powerhouse tailored to your workflow.

Models

7' x 24'

CAM Split Tilt Extra Wide 15.4K
15400 lbs
Model #
P-SDTX82154-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Wheels
16″, 8-Hole Steel

7' x 25'

CAM Split Tilt Extra Wide 15.4K
15400 lbs
Model #
P-SDTX82164-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Wheels
16″, 8-Hole Steel

7' x 26'

CAM Split Tilt Extra Wide 15.4K
15400 lbs
Model #
P-SDTX82174-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Wheels
16″, 8-Hole Steel

7' x 24'

CAM Split Tilt Extra Wide 17.6K
17600 lbs
Model #
P-SDTX82154-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Wheels
17.5″, 8-Hole Steel

7' x 25'

CAM Split Tilt Extra Wide 17.6K
17600 lbs
Model #
P-SDTX82164-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Wheels
17.5″, 8-Hole Steel

7' x 26'

CAM Split Tilt Extra Wide 17.6K
17600 lbs
Model #
P-SDTX82174-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Wheels
17.5″, 8-Hole Steel

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
