Full Width Equipment Trailer

Bed Width: 8.5′
Bed Length: 18′-37′
GVWR: 11,000-17,600 lbs
GAWR: 5,080-8,000 lbs/axle
CAM Full Width Equipment Hauler Trailer Full Front View

102" Wide Deck with Drive-Over Fenders – Maximize Loading Width

Load and haul wider equipment with confidence thanks to the full-width deck and durable diamond plate drive-over fenders.

Stake Pockets and Rub Rails – Built-In Cargo Flexibility

Secure a variety of loads using 14 stake pockets and integrated rub rails along the frame for easy tie-down.

D-Rings and Banjo-Style Tie-Downs – Dependable Anchoring

Four built-in tie-down points, including two banjo eyes and two D-rings, provide rock-solid equipment security in transit.

Quick Release Stand-Up Ramps – Faster Loading

Five-foot angle-style ramps deploy quickly for easy equipment access, then store upright to conserve deck space.

Full Width Equipment Trailer

CAM Superline® Full Width Equipment Trailers deliver reliable hauling power with a 102″ wide flatbed deck, drive-over fenders, and reinforced tie-down options—ideal for heavy-duty hauling of machinery and oversized equipment.

Key Benefits

102" Wide Deck with Drive-Over Fenders – Maximize Loading Width

Load and haul wider equipment with confidence thanks to the full-width deck and durable diamond plate drive-over fenders.

Stake Pockets and Rub Rails – Built-In Cargo Flexibility

Secure a variety of loads using 14 stake pockets and integrated rub rails along the frame for easy tie-down.

D-Rings and Banjo-Style Tie-Downs – Dependable Anchoring

Four built-in tie-down points, including two banjo eyes and two D-rings, provide rock-solid equipment security in transit.

Quick Release Stand-Up Ramps – Faster Loading

Five-foot angle-style ramps deploy quickly for easy equipment access, then store upright to conserve deck space.

Explore This Trailer

CAM Full Width Equipment Hauler Trailer Front Trailer
CAM Full Width Equipment Hauler Trailer Zoomed Out Front View
CAM Full Width Equipment Hauler Trailer Full Front View

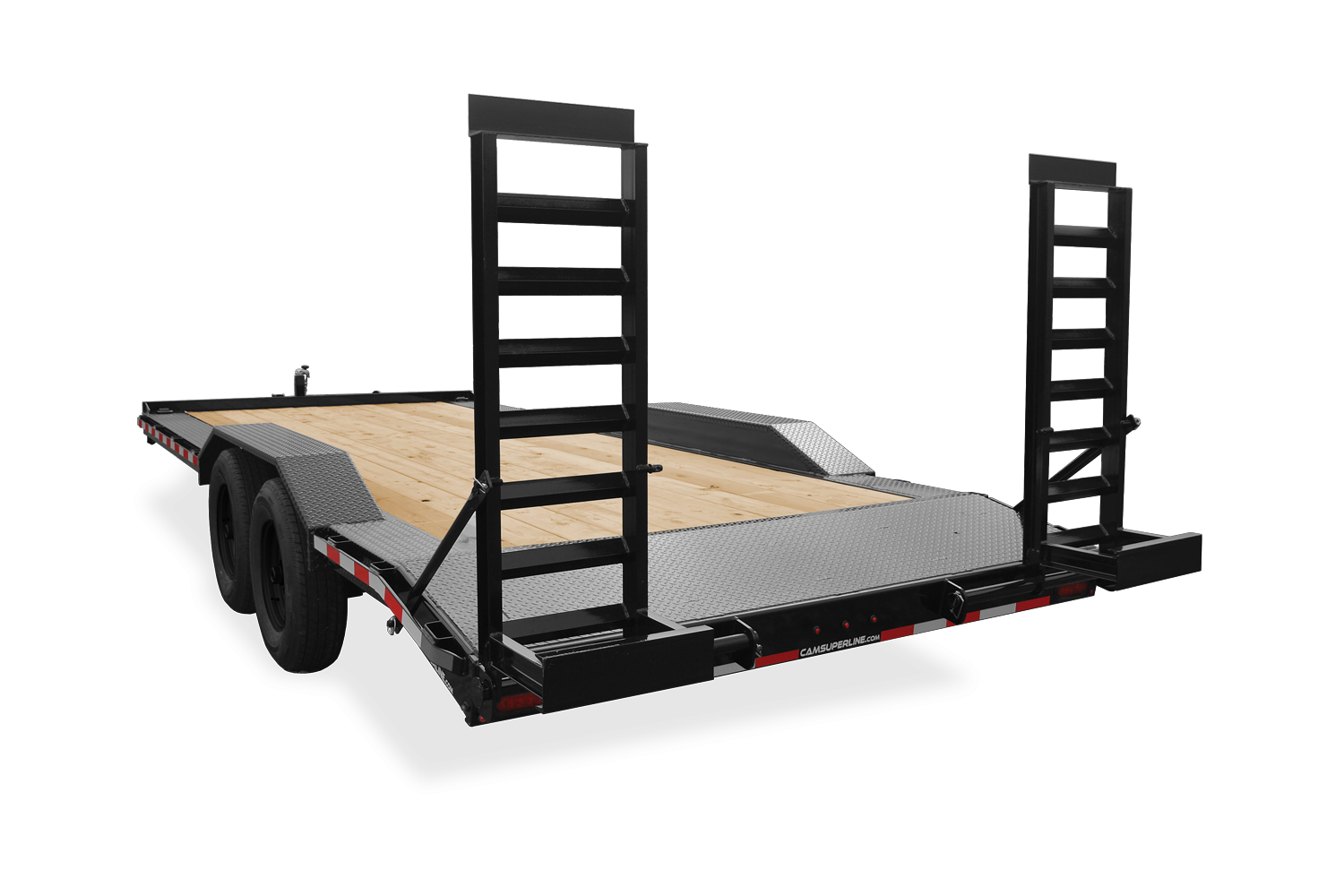

CAM Full Width Equipment Hauler Trailer Rear View

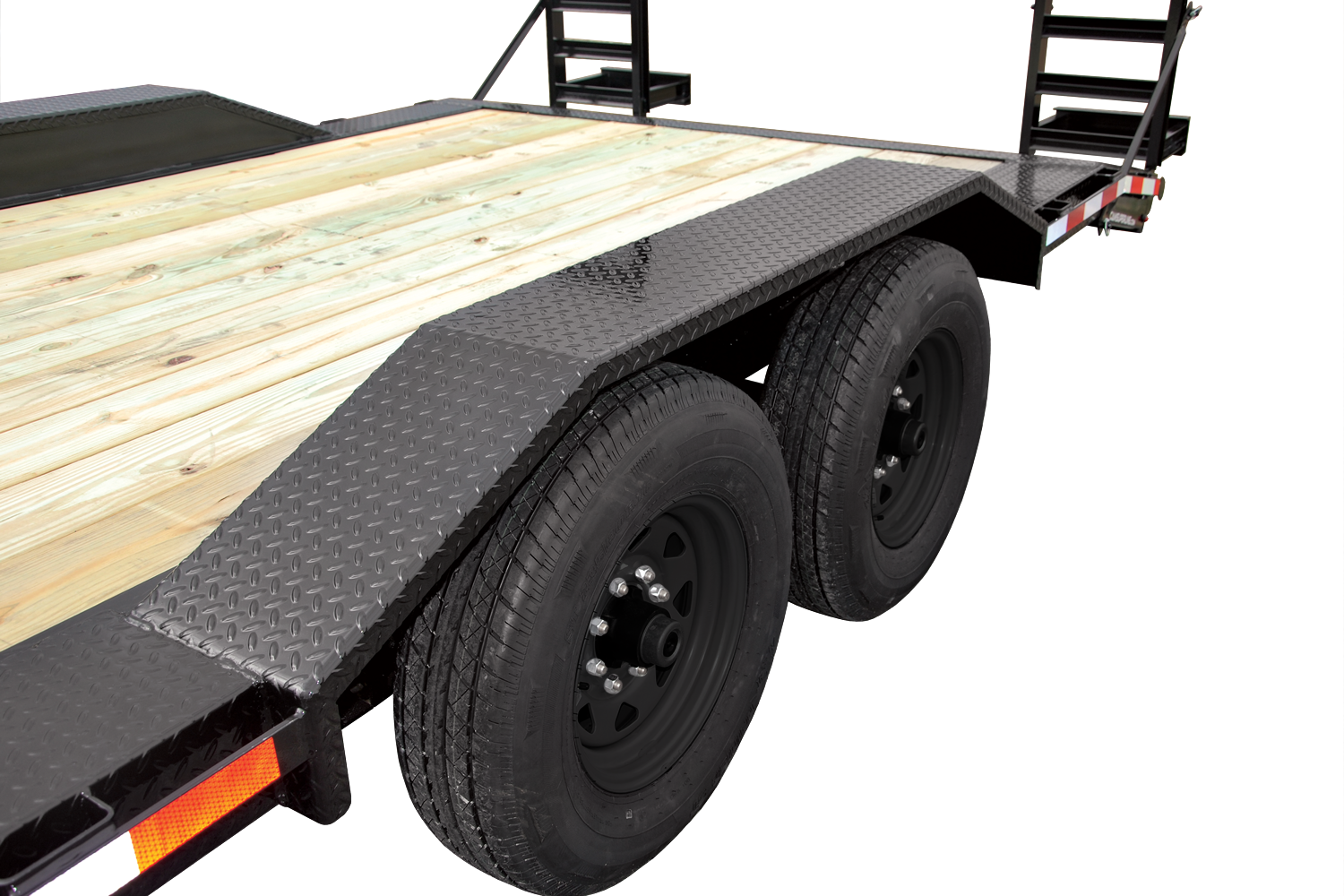

CAM Full Width Equipment Hauler Trailer Side View Fender

Model Color Options:

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a New Full Width Equipment Trailer?

Overview

CAM Superline®’s Full Width Equipment Trailers are engineered to handle tough jobs with strength and stability. With GVWR ratings of 11K, 15.4K, and 17.6K pounds, they’re designed to move everything from skid steers and mini excavators to larger construction machines. The low-profile deck and drive-over fenders make this a go-to flatbed trailer for wide and wheeled equipment.

Available Models

Choose from models in 16+2, 18+2, 20+2, or 22+2 deck lengths, with configurations across all three GVWR classes. Higher-capacity models feature oil-bath axles, slipper spring suspensions, and upgraded tires. All trailers include LED lighting, 7-way electrical plug, and a sealed wiring harness for reliability on the road.

Standard Features

Standard specs include a pressure-treated wood deck, 7K or 12K drop-leg jack, adjustable 2-5/16” coupler, and a spare tire mount. Each unit also comes with a steel toolbox, diamond plate drive-over fenders, sealed wiring harness, safety chains, and a three-year warranty. Deck heights range from 22.5" to 26", depending on capacity, with matching deck widths at 81".

Options

Customize your flatbed trailer with oak decking for added durability, a winch mount for powered equipment loading, stylish aluminum wheels, or a gooseneck configuration (available on 15.4K and 17.6K GVWR models) to boost stability and towing performance.

Models

8.5' x 25'

CAM Full Width Equipment 11K
11000 lbs
Model #
P-CETX10218-110
GVWR (lbs)
11000 lbs
GAWR (lbs/axle)
5080 lbs/axle
Wheels
15″, 6-Hole Steel

8.5' x 27'

CAM Full Width Equipment 11K
11000 lbs
Model #
P-CETX10220-110
GVWR (lbs)
11000 lbs
GAWR (lbs/axle)
5080 lbs/axle
Wheels
15″, 6-Hole Steel

8.5' x 25'

CAM Full Width Equipment 15.4K
15400 lbs
Model #
P-CETX10218-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Wheels
16″, 8-Hole Steel

8.5' x 27'

CAM Full Width Equipment 15.4K
15400 lbs
Model #
P-CETX10220-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Wheels
16″, 8-Hole Steel

8.5' x 29'

CAM Full Width Equipment 15.4K
15400 lbs
Model #
P-CETX10222-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Wheels
16″, 8-Hole Steel

8.5' x 31'

CAM Full Width Equipment 15.4K
15400 lbs
Model #
P-CETX10224-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Wheels
16″, 8-Hole Steel

8.5' x 33'

CAM Full Width Equipment GN 15.4K
15400 lbs
Model #
P-CETX10222-154G
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Wheels
16″, 8-Hole Steel

8.5' x 37'

CAM Full Width Equipment GN 17.6K
15400 lbs
Model #
P-CETX10226-176G
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Wheels
17.5″, 8-Hole Steel

8.5' x 25'

CAM Full Width Equipment 17.6K
17600 lbs
Model #
P-CETX10218-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Wheels
17.5″, 8-Hole Steel

8.5' x 27'

CAM Full Width Equipment 17.6K
17600 lbs
Model #
P-CETX10220-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Wheels
17.5″, 8-Hole Steel

8.5' x 29'

CAM Full Width Equipment 17.6K
17600 lbs
Model #
P-CETX10222-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Wheels
17.5″, 8-Hole Steel

8.5' x 31'

CAM Full Width Equipment 17.6K
17600 lbs
Model #
P-CETX10224-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Wheels
17.5″, 8-Hole Steel

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
